Description

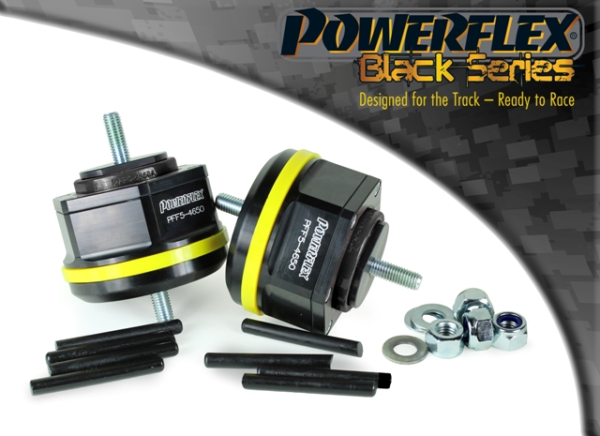

Engine Mount PFF5-4650BLK
Fits BMW 3 Series E36 Compact (1993-2000)
Powerflex Series: Black

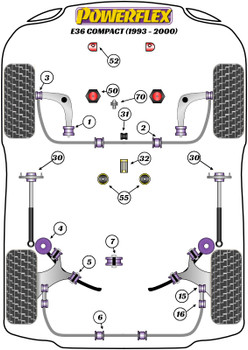

Diagram Reference: 50
Pack Contains: 2
Required Per Vehicle: 2
Bush Size:
OEM: 22111095444, 22116779970, 22116771361 11811092583, 11812283798, 11817837985 11812228298, 11811136542
Tuneable engine mounts to suit your driving demands. This mount uses our Black 95A material and can be stiffened further using the Black 95A pins. It fits 6-cyl models only except the E46 Xi and Convertible models, and for the E9* it fits the M3 only. It will not fit any 4-cyl petrol models. An increase in NVH, usually at idle, should be expected when stiffening the connecting mount between the engine/transmission and chassis. The harder the material used, the greater the NVH transmitted. We do not recommend fitting these mounts to diesel-engined vehicles due to excessive NVH. The graph above shows Load vs Displacement, peaking at 5mm displacement. PFF5-4650BLK is nearly 700% stiffer than OE at 5mm compression.
The graph above shows Load vs Displacement, peaking at 5mm displacement.
PFF5-4650BLK is nearly 700% stiffer than OE at 5mm compression.
